N° 34

To secure the pan gasket to the macerating unit.

N° 28C

Metal adjustable screw clamp - 20-32mm

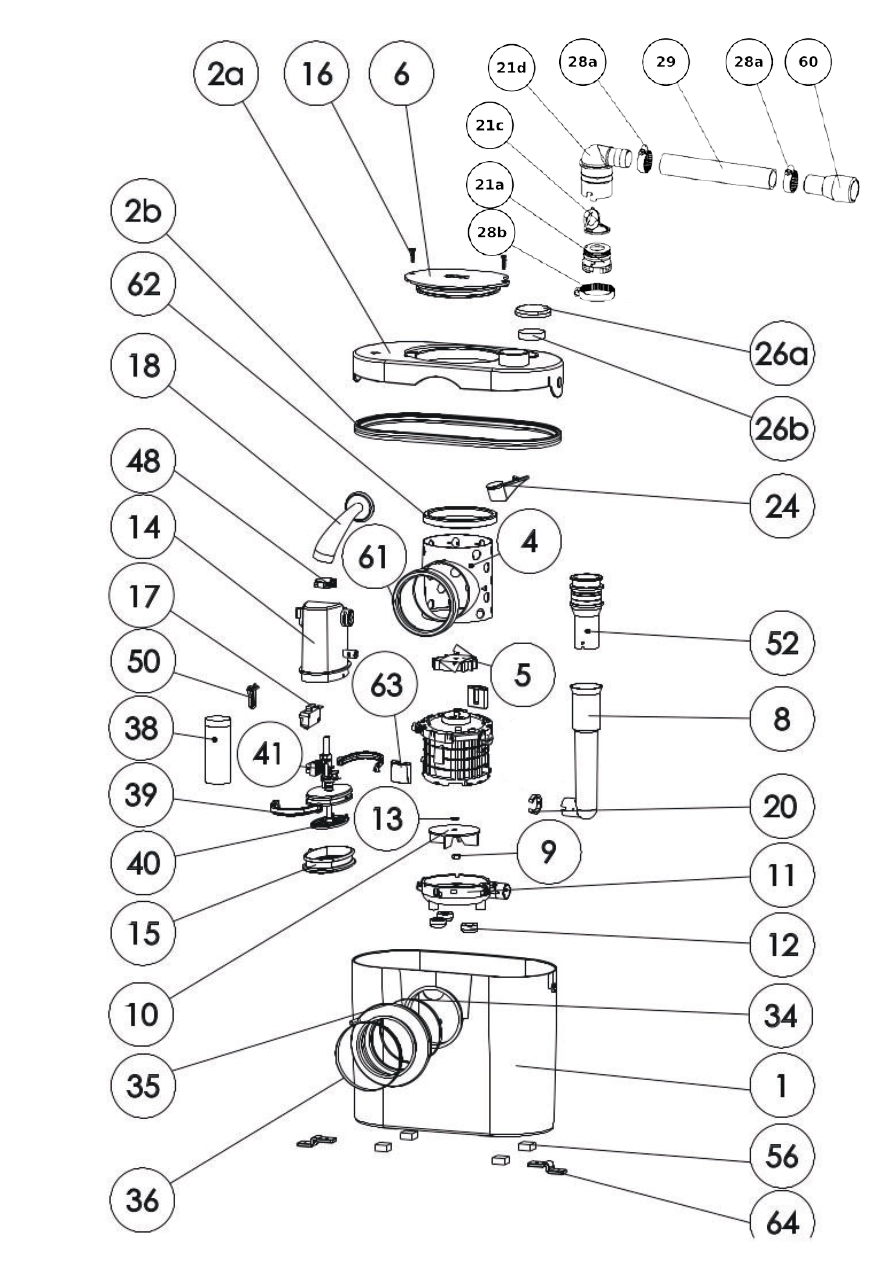

N°39 on the parts diagram

N° 36

Metal adjustable screw clamp - 90-110mm

N° 63

Rubber motor mount shock absorber that holds the motor in position within the case.  BL120169

N° 48

Crimp style fixing clamp.

N° 26b

Carbon filter

N° 40

Activation Grid/Rod

White 23/32 connector.

N° 26a

Plastic air vent cover that sits over the air vent opening.

N° 61

Rubber side shock absorber ring that fits on the side of the collection basket.

White 3 outlets adapter.

N° 7

Upper discharge pipe white, allows waste waters to exit through the case lid once attached to the Non return valve elbow.

N° 21C

NRV flap located inside of the NRV discharge pipe.

N° 18

Cable gland that allows the safe passing of the mains cable through the pump case.
